Xinghua City Tianli Stainless Steel Products Co., Ltd.
Stainless Steel Wire Rope 7X7
Stainless Steel Wire Rope 7X7
Stainless Steel Wire Rope 7X7
Stainless Steel Wire Rope 7X7
Stainless Steel Wire Rope 7X7
Stainless Steel Wire Rope 7X7
  • Stainless Steel Wire Rope 7X7
  • Stainless Steel Wire Rope 7X7
  • Stainless Steel Wire Rope 7X7
  • Stainless Steel Wire Rope 7X7
  • Stainless Steel Wire Rope 7X7
  • Stainless Steel Wire Rope 7X7

Stainless Steel Wire Rope 7X7

    Payment Type: L/C

Additional Info

Productivity: 600 Tons Per Month

Supply Ability: 600 Tons Per Month

Certificate: ISO, AISI, ASTM, GB, EN, DIN, JIS

Product Description

In addition to the wear of the outer layer of the steel wire, the Wire Rope is mainly broken due to metal fatigue caused by repeated bending when bypassing the pulley and drum. Therefore, the ratio of the pulley or drum to the wire rope diameter is an important factor in determining the life of the wire rope. It is widely used in coal, petroleum, metallurgy, chemical industry, shipbuilding, bridge, electric power, rubber, military industry, tourism, water conservancy, light industry and other industries.Model NO.
Surface Treatment
Bright
Material
Stainless Steel
Stainless Steel Grade
304 ( 316 Optional )
Diameter
8mm ( 0.3mm to 40mm Optional )
Finish
Bright & Dry & Smooth
Lay
Rhrl Rhol
Customized Logo
Yes
Customized Packaging
Yes
Lead Time
3 to 15 Days
Packing Length
1000 Meters Per Reel, Other Length Available
Trade Terms
CIF CFR Fob EXW
Shipment
by Sea & by DHL & by Air
Trademark
TianLi
Transport Package
Plywood Reel and Pallet
Specification
7x7
Origin
Dainan, Xinghua, Taizhou, Jiangsu, China
HS Code
731210
Surface Treatment
Bright
Material
Stainless Steel
Stainless Steel Grade
304 ( 316 Optional )
Diameter
8mm ( 0.3mm to 40mm Optional )
Finish
Bright & Dry & Smooth
Lay
Rhrl Rhol
Customized Logo
Yes
Customized Packaging
Yes
Lead Time
3 to 15 Days
Packing Length
1000 Meters Per Reel, Other Length Available
Trade Terms
CIF CFR Fob EXW
Shipment
by Sea & by DHL & by Air
Trademark
TianLi
Transport Package
Plywood Reel and Pallet
Specification
7x7
Origin
Dainan, Xinghua, Taizhou, Jiangsu, China
HS Code
731210
Stainless Steel Wire Rope 7x7

Product Description


Trade Terms: CIF CFR FOB EXW
Payment Terms: T/T & Irrevocable L/C at sight
Shipment: By Sea & By DHL & By Air
Lead Time: 20 days for 20' container order

Related Products

TIANLI STAINLESS STEEL produce Stainless Steel Wire Rope and all related accessories.




7x7 Stainless Steel Wire

Company Information

TIANLI STAINLESS STEEL found in 2008, specialized in producing stainless steel products, such as stainless steel wire rope, Stainless Steel Link Chain, Stainless Steel Round Bar and its related accessories. Our annual sales over 5000 tons. our products not only popular with excellent quality, but also receive good market feedback from China domestic and overseas.



Factory

Part of our stainless steel wire rope production workshop. Monthly production capacity 600 tons.



Packaging and Shipping

Stainless Steel Wire Rope all packed by clean plywood reel, reel on plywood pallet for easy loading and unloading. clear plastic film also covered to avoid dirt and water.




Certifications

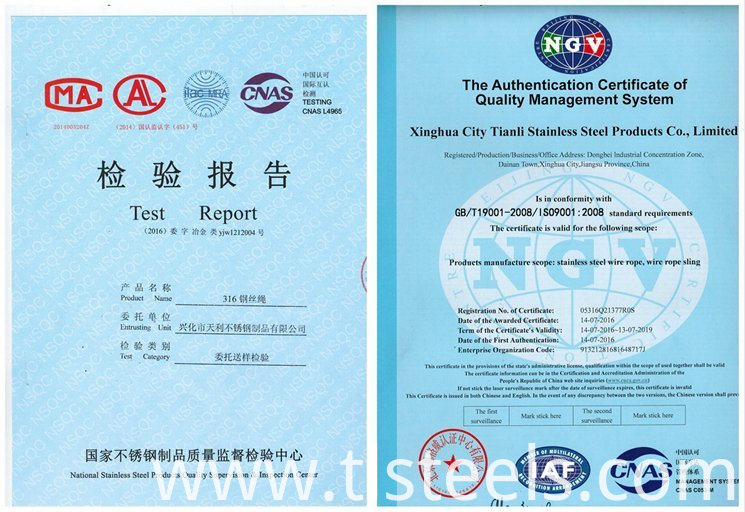

We are an ISO9001:2008 certified manufacturer for Stainless Steel Products.
Test Report from our National Stainless Steel Products Quality Supervision & Inspection Center available, date of issue within 5 working days.




Inspection
We have strict quality control from raw material to production process and finished products.
Chemical composition analysis and tensile strength, minimum breaking load test for every production batch.

Stainless Steel Wire Rope 7x7

Product Description
1 Product Name Stainless Steel Wire Rope
2 Material Stainless Steel
3 Stainless Steel Grade 304 316 optional
4 Construction 7x7 ( 1x19 7x19 7x37 19x7 6x7 6x12 6x19 6x36 6x37 FC PP WSC IWRC optional )
5 Diameter 4mm ( we can produce 0.3mm to 40mm )
6 Net Weight 64 kg/1000m
7 Packing Length 1000 meters per reel, other length such as 100m 200m 500m 1500m 2000m 1000ft 5000ft available
8 Lay RHRL right hand regular lay, RHOL right hand ordinary lay
9 Tensile Strength 1570 N/MM2
10 Minimum Breaking Load 9.5 kN
11 Finish Bright & Dry & Smooth
12 HS CODE 731210


Trade Terms: CIF CFR FOB EXW

Payment Terms: T/T & Irrevocable L/C at sight

Shipment: By Sea & By DHL & By Air

Lead Time: 20 days for 20' container order

Related Products

TIANLI STAINLESS STEEL produce Stainless Steel Wire Rope and all related accessories.

aircraft grade wire rope

7x7 Stainless Steel Wire
Construction Diameter mm Approx kg/1000m Minimum Breaking Load N Minimum Breaking Load kg
7x7
Stainless Steel Wire Rope 7X7
0.3 0.36 53.9 5.5
0.36 0.5184 83.3 8.5
0.45 0.81 142.1 14.5
0.54 1.1664 205.8 21
0.6 1.44 215.6 22
0.72 2.0736 362.6 37
0.8 2.56 460.6 47
0.9 3.24 539 55
1 4 637 65
1.2 5.76 882 90
1.6 10.24 2100 214
1.8 12.96 2254 230
2 16 2940 300
2.4 23.04 4100 418
2.5 25 4400 449
3 36 6370 650
3.5 49 7640 780
4 64 9510 970
5 100 14700 1500
6 144 18600 1898
8 256 40600 4142

Company Information

TIANLI STAINLESS STEEL found in 2008, specialized in producing stainless steel products, such as stainless steel wire rope, stainless Steel Link Chain, stainless steel round bar and its related accessories. Our annual sales over 5000 tons. our products not only popular with excellent quality, but also receive good market feedback from China domestic and overseas.
aircraft grade wire rope

Factory

Part of our stainless steel wire rope production workshop. Monthly production capacity 600 tons.
aircraft grade wire rope

Packaging and Shipping

Stainless Steel Wire Rope all packed by clean plywood reel, reel on plywood pallet for easy loading and unloading. clear plastic film also covered to avoid dirt and water.

aircraft grade wire rope

Certifications

We are an ISO9001:2008 certified manufacturer for Stainless Steel Products.

Test Report from our National Stainless Steel Products Quality Supervision & Inspection Center available, date of issue within 5 working days.

aircraft grade wire rope

Inspection

We have strict quality control from raw material to production process and finished products.

Chemical composition analysis and tensile strength, minimum breaking load test for every production batch.

aircraft grade wire rope

Looking for ideal Aircraft Grade Wire Rope Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Plastic Coated Steel Wire Rope are quality guaranteed. We are China Origin Factory of Aircraft Cable for Sale. If you have any question, please feel free to contact us.

Product Categories : Stainless Steel Wire Rope > 7x7 Stainless Steel Wire Rope
