Product Description
7x19 Steel Wire Rope can provide FC (fiber core) or WSC (Wire Rope core). When supplied with wsc, the rope is usually called 7x19. We can produce 0.3mm to 40mm Stainless Steel Wire rope, material: 304 A2 1.4301 (optional 316 A4 1.4401). The product has a smooth surface, beautiful appearance, high strength, good corrosion resistance, and is more durable than ordinary steel. Can be used for stainless steel cables, stainless steel aircraft wires, etc.
model.
| 1 | Product Name | Stainless Steel Wire Rope with Factory Price |
| 2 | Material | Stainless Steel |
| 3 | Stainless Steel Grade | 304 A2 1.4301 ( 316 A4 1.4401 optional ) |
| 4 | Construction | 7x19 ( 1x19 7x7 7x37 6x7 6x12 6x19 6x36 6x37 FC PP WSC IWRC optional ) |
| 5 | Diameter | 8mm ( we can produce 0.3mm to 40mm ) |
| 6 | Net Weight | 256 kg/1000m |
| 7 | Packing Length | 1000 meters per reel, other length such as 100m 200m 500m 1500m 2000m 1000ft 5000ft available |
| 8 | Lay | RHRL right hand regular lay, RHOL right hand ordinary lay |
| 9 | Tensile Strength | 1570 N/MM2 |
| 10 | Minimum Breaking Load | 40.1 kN |
| 11 | Finish | Bright & Dry & Smooth |
| 12 | HS CODE | 731210 |
Trade Terms: CIF CFR FOB EXW
Payment Terms: T/T & Irrevocable L/C at sight
Shipment: By Sea & By DHL & By Air
Lead Time: 20 days for 20' container order
Related Products
| Construction | Diameter mm | Approx kg/1000m | Minimum Breaking Load kN | Minimum Breaking Load kg |
| 7x19  | 2.5 | 25 | 4.41 | 450 |
| 3 | 36 | 6.37 | 650 | |
| 3.2 1/8" | 40.96 | 7.85 | 801 | |
| 4 | 64 | 8.62 | 880 | |
| 4.5 | 81 | 12.25 | 1250 | |
| 4.76 3/16" | 92.16 | 16.51 | 1685 | |
| 5 | 100 | 16.66 | 1700 | |
| 5.6 | 125.44 | 22.25 | 2270 | |
| 6 | 144 | 23.52 | 2400 | |
| 6.35 1/4" | 163.84 | 28.5 | 2908 | |
| 8 5/16" | 256 | 40.1 | 4082 | |
| 9 | 324 | 46 | 4694 | |
| 9.53 3/8" | 361 | 53.4 | 5449 | |
| 10 | 400 | 54 | 5510 | |
| 12 | 576 | 73 | 7449 | |
| 13 1/2" | 676 | 82 | 8367 | |
| 14 | 784 | 89 | 9082 | |
| 16 | 1024 | 124 | 12653 | |
| 18 | 1296 | 157 | 16020 | |
| 20 | 1600 | 194 | 19796 | |
| 22 | 1936 | 235 | 23980 | |
| 24 | 2304 | 280 | 28571 | |
| 26 | 2704 | 328 | 33469 | |
| 28 | 3136 | 381 | 38878 | |
| 30 | 3600 | 437 | 44592 | |
| 32 | 4096 | 497 | 50714 |

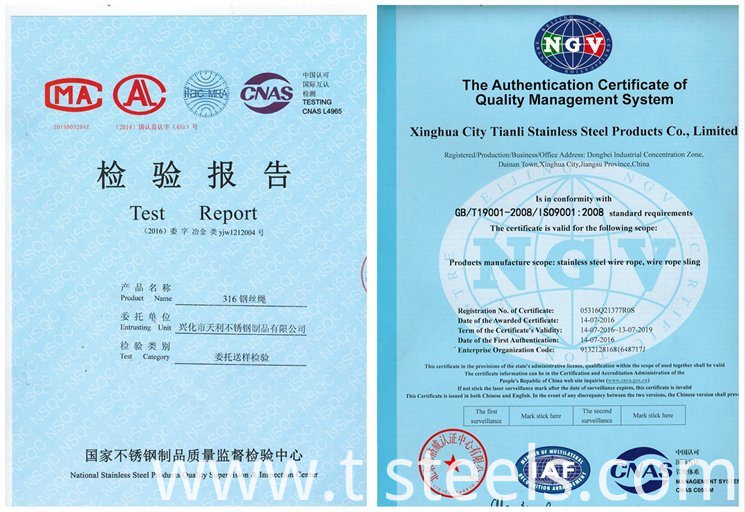

We are an ISO9001:2008 certified manufacturer for Stainless Steel Products.
Test Report from our National Stainless Steel Products Quality Supervision & Inspection Center available, date of issue within 5 working days.

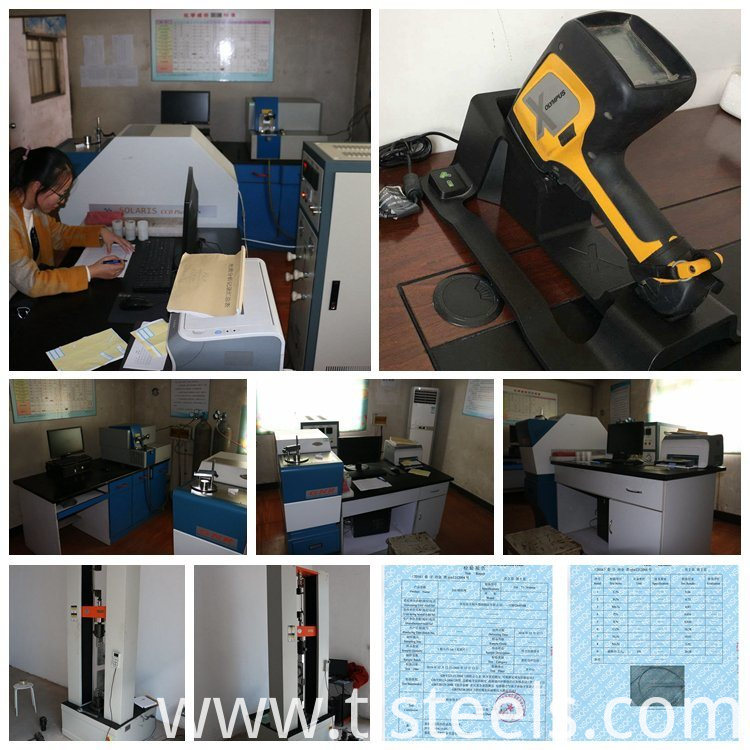

Inspection
We have strict quality control from raw material to production process and finished products.
Chemical composition analysis and tensile strength, minimum breaking load test for every production batch.
