316 Stainless Steel Wire rope has the characteristics of high temperature resistance, good fatigue resistance, good tensile resistance, long life, corrosion resistance and strong durability. Suitable for use in coastal areas.
Model NO.
Stainless Steel Grade
316 A4 1.4401 ( 304 A2 1.4301 Optional )
Diameter
8mm ( 0.3mm to 40mm Optional )
Finish
Bright & Dry & Smooth
Packing Length
1000 Meters Per Reel, Other Length Available
Trade Terms
CIF CFR Fob EXW
Shipment
by Sea & by DHL & by Air
Transport Package
Plywood Reel and Pallet
Origin
Dainan, Xinghua, Taizhou, Jiangsu, China
Stainless Steel Grade
316 A4 1.4401 ( 304 A2 1.4301 Optional )
Diameter
8mm ( 0.3mm to 40mm Optional )
Finish
Bright & Dry & Smooth
Packing Length
1000 Meters Per Reel, Other Length Available
Trade Terms
CIF CFR Fob EXW
Shipment
by Sea & by DHL & by Air
Transport Package
Plywood Reel and Pallet
Origin
Dainan, Xinghua, Taizhou, Jiangsu, China
316 Stainless Steel Wire Rope Product Description Trade Terms: CIF CFR FOB EXW Payment Terms: T/T & Irrevocable L/C at sight Shipment: By Sea & By DHL & By Air Lead Time: 20 days for 20' container order Related Products TIANLI STAINLESS STEEL produce Stainless Steel Wire Rope and all related accessories. 7x19 Stainless Steel Wire Rope Specification Company Information TIANLI STAINLESS STEEL found in 2008, specialized in producing stainless steel products, such as stainless steel wire rope, Stainless Steel Link Chain, Stainless Steel Round Bar and its related accessories. Our annual sales over 5000 tons. our products not only popular with excellent quality, but also receive good market feedback from China domestic and overseas. Factory Part of our stainless steel wire rope production workshop. Monthly production capacity 600 tons. Packaging and Shipping Stainless Steel Wire Rope all packed by clean plywood reel, reel on plywood pallet for easy loading and unloading. clear plastic film also covered to avoid dirt and water. Certifications We are an ISO9001:2008 certified manufacturer for Stainless Steel Products. Test Report from our National Stainless Steel Products Quality Supervision & Inspection Center available, date of issue within 5 working days. Inspection We have strict quality control from raw material to production process and finished products. Chemical composition analysis and tensile strength, minimum breaking load test for every production batch. 316 Stainless Steel Wire Rope Product Description | 1 | Product Name | 316 Stainless Steel Wire Rope |
| 2 | Material | Stainless Steel |
| 3 | Stainless Steel Grade | 316 A4 1.4401 ( 304 A2 1.4301 optional ) |
| 4 | Construction | 7x19 ( 1x19 7x7 7x37 6x7 6x12 6x19 6x36 6x37 FC PP WSC IWRC optional ) |
| 5 | Diameter | 8mm ( we can produce 0.3mm to 40mm ) |
| 6 | Net Weight | 256 kg/1000m |
| 7 | Packing Length | 1000 meters per reel, other length such as 100m 200m 500m 1500m 2000m 1000ft 5000ft available |
| 8 | Lay | RHRL right hand regular lay, RHOL right hand ordinary lay |
| 9 | Tensile Strength | 1570 N/MM2 |
| 10 | Minimum Breaking Load | 40.1 kN |
| 11 | Finish | Bright & Dry & Smooth |
| 12 | HS CODE | 731210 |
Trade Terms: CIF CFR FOB EXW
Payment Terms: T/T & Irrevocable L/C at sight
Shipment: By Sea & By DHL & By Air
Lead Time: 20 days for 20' container order
Related Products TIANLI STAINLESS STEEL produce Stainless Steel Wire Rope and all related accessories.
7x19 Stainless Steel Wire Rope Specification | Construction | Diameter mm | Approx kg/1000m | Minimum Breaking Load kN | Minimum Breaking Load kg |
| 7x19  | 2.5 | 25 | 4.41 | 450 |
| 3 | 36 | 6.37 | 650 |
| 3.2 1/8" | 40.96 | 7.85 | 801 |
| 4 | 64 | 8.62 | 880 |
| 4.5 | 81 | 12.25 | 1250 |
| 4.76 3/16" | 92.16 | 16.51 | 1685 |
| 5 | 100 | 16.66 | 1700 |
| 5.6 | 125.44 | 22.25 | 2270 |
| 6 | 144 | 23.52 | 2400 |
| 6.35 1/4" | 163.84 | 28.5 | 2908 |
| 8 5/16" | 256 | 40.1 | 4082 |
| 9 | 324 | 46 | 4694 |
| 9.53 3/8" | 361 | 53.4 | 5449 |
| 10 | 400 | 54 | 5510 |
| 12 | 576 | 73 | 7449 |
| 13 1/2" | 676 | 82 | 8367 |
| 14 | 784 | 89 | 9082 |
| 16 | 1024 | 124 | 12653 |
| 18 | 1296 | 157 | 16020 |
| 20 | 1600 | 194 | 19796 |
| 22 | 1936 | 235 | 23980 |
| 24 | 2304 | 280 | 28571 |
| 26 | 2704 | 328 | 33469 |
| 28 | 3136 | 381 | 38878 |
| 30 | 3600 | 437 | 44592 |
| 32 | 4096 | 497 | 50714 |
Company Information TIANLI STAINLESS STEEL found in 2008, specialized in producing stainless steel products, such as stainless steel wire rope, stainless Steel Link Chain, stainless steel round bar and its related accessories. Our annual sales over 5000 tons. our products not only popular with excellent quality, but also receive good market feedback from China domestic and overseas.
Factory Part of our stainless steel wire rope production workshop. Monthly production capacity 600 tons.
Packaging and Shipping Stainless Steel Wire Rope all packed by clean plywood reel, reel on plywood pallet for easy loading and unloading. clear plastic film also covered to avoid dirt and water.

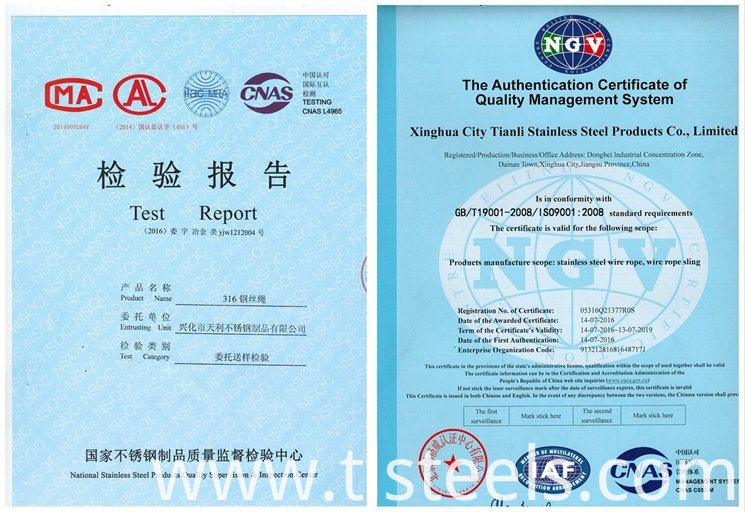

Certifications We are an ISO9001:2008 certified manufacturer for Stainless Steel Products.
Test Report from our National Stainless Steel Products Quality Supervision & Inspection Center available, date of issue within 5 working days.
Inspection
We have strict quality control from raw material to production process and finished products.
Chemical composition analysis and tensile strength, minimum breaking load test for every production batch.
Looking for ideal Vinyl
Coated Wire Rope Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Wire Pulling Rope are quality guaranteed. We are China Origin Factory of Plastic Coated Cable. If you have any question, please feel free to contact us.
Product Categories : Stainless Steel Wire Rope > 7x19 Stainless Steel Wire Rope
