Xinghua City Tianli Stainless Steel Products Co., Ltd.
Ss Wire Rope 3.2mm
Ss Wire Rope 3.2mm
Ss Wire Rope 3.2mm
Ss Wire Rope 3.2mm
Ss Wire Rope 3.2mm
Ss Wire Rope 3.2mm
  • Ss Wire Rope 3.2mm
  • Ss Wire Rope 3.2mm
  • Ss Wire Rope 3.2mm
  • Ss Wire Rope 3.2mm
  • Ss Wire Rope 3.2mm
  • Ss Wire Rope 3.2mm

Ss Wire Rope 3.2mm

    Payment Type: L/C

Additional Info

Productivity: 600 Tons Per Month

Supply Ability: 600 Tons Per Month

Certificate: ISO, AISI, ASTM, GB, EN, DIN, JIS

Product Description


In addition to the wear of the outer layer of the steel wire, the Wire Rope is mainly broken due to metal fatigue caused by repeated bending when bypassing the pulley and drum. Therefore, the ratio of the pulley or drum to the wire rope diameter is an important factor in determining the life of the wire rope.

Model NO.

SS Wire Rope 3.2mm


Surface Treatment
Bright
Material
Stainless Steel
Stainless Steel Grade
304 A2 1.4301 ( 316 A4 1.4401 Optional )
Diameter
3.2mm ( We Can Produce 0.3mm to 40mm )
Finish
Bright & Dry & Smooth
Lay
Rhrl Rhol
Customized Logo
Yes
Customized Packaging
Yes
Lead Time
3 to 15 Days
Packing Length
1000 Meters Per Reel, Other Length Available
Trade Terms
CIF CFR Fob EXW
Shipment
by Sea & by DHL & by Air
Trademark
TianLi
Transport Package
Plywood Reel and Pallet
Specification
7x19
Origin
Dainan, Xinghua, Taizhou, Jiangsu, China
HS Code
731210
Model NO.
ss wire rope 3.2mm
Surface Treatment
Bright
Material
Stainless Steel
Stainless Steel Grade
304 A2 1.4301 ( 316 A4 1.4401 Optional )
Diameter
3.2mm ( We Can Produce 0.3mm to 40mm )
Finish
Bright & Dry & Smooth
Lay
Rhrl Rhol
Customized Logo
Yes
Customized Packaging
Yes
Lead Time
3 to 15 Days
Packing Length
1000 Meters Per Reel, Other Length Available
Trade Terms
CIF CFR Fob EXW
Shipment
by Sea & by DHL & by Air
Trademark
TianLi
Transport Package
Plywood Reel and Pallet
Specification
7x19
Origin
Dainan, Xinghua, Taizhou, Jiangsu, China
HS Code
731210
SS Wire Rope 3.2mm

Product Description


Trade Terms: CIF CFR FOB EXW
Payment Terms: T/T & Irrevocable L/C at sight
Shipment: By Sea & By DHL & By Air
Lead Time: 20 days for 20' container order

Related Products

TIANLI STAINLESS STEEL produce Stainless Steel Wire Rope and all related accessories.




7x19 Stainless Steel Wire Rope Specification


Company Information

TIANLI STAINLESS STEEL found in 2008, specialized in producing stainless steel products, such as Stainless Steel Wire Rope, Stainless Steel Link Chain, Stainless Steel Round Bar and its related accessories. Our annual sales over 5000 tons. our products not only popular with excellent quality, but also receive good market feedback from China domestic and overseas.



Factory

Part of our stainless Steel Wire Rope production workshop. Monthly production capacity 600 tons.



Packaging and Shipping

Stainless Steel Wire Rope all packed by clean plywood reel, reel on plywood pallet for easy loading and unloading. clear plastic film also covered to avoid dirt and water.

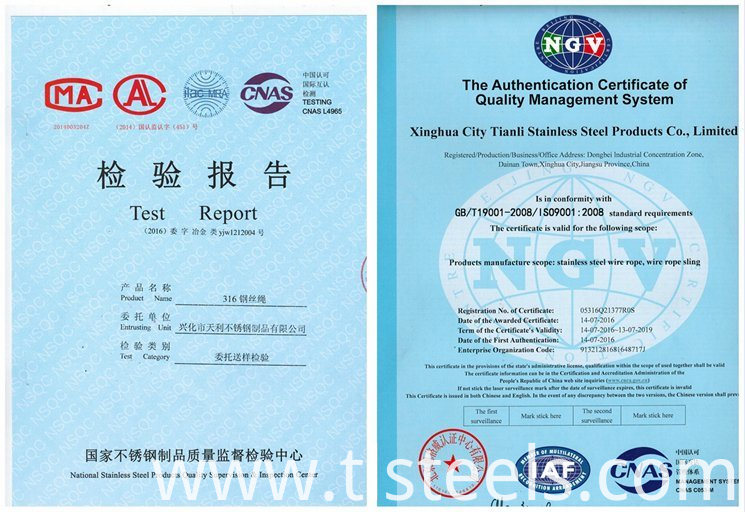

Certifications
We are an ISO9001:2008 certified manufacturer for Stainless Steel Products.
Test Report from our National Stainless Steel Products Quality Supervision & Inspection Center available, date of issue within 5 working days.

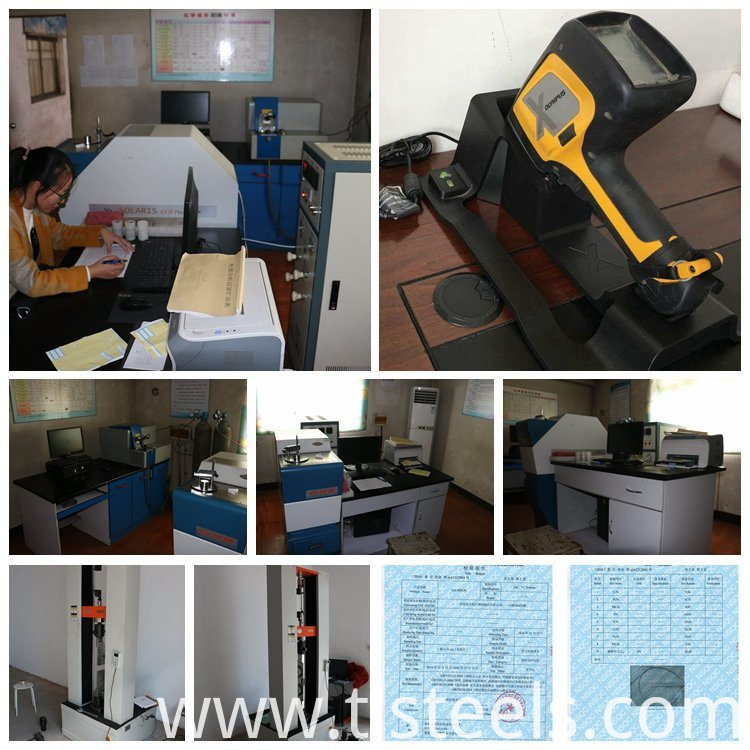

Inspection
We have strict quality control from raw material to production process and finished products.
Chemical composition analysis and tensile strength, minimum breaking load test for every production batch.


SS Wire Rope 3.2mm

Product Description
1 Product Name SS Wire Rope 3.2mm
2 Material Stainless Steel
3 Stainless Steel Grade 304 A2 1.4301
4 Construction 7x19 ( 1x19 7x7 7x37 6x7 6x12 6x19 6x36 6x37 FC PP WSC IWRC optional )
5 Diameter 3.2mm ( we can produce 0.3mm to 40mm )
6 Net Weight 40.96 kg/1000m
7 Packing Length 1000 meters per reel, other length such as 100m 200m 500m 1500m 2000m 1000ft 5000ft available
8 Lay RHRL right hand regular lay, RHOL right hand ordinary lay
9 Tensile Strength 1570 N/MM2
10 Minimum Breaking Load 7.85 kN
11 Finish Bright & Dry & Smooth
12 HS CODE 731210


Trade Terms: CIF CFR FOB EXW

Payment Terms: T/T & Irrevocable L/C at sight

Shipment: By Sea & By DHL & By Air

Lead Time: 20 days for 20' container order

Related Products

TIANLI STAINLESS STEEL produce Stainless Steel Wire Rope and all related accessories.

Ss Wire Rope 3.2mm

7x19 Stainless Steel Wire Rope Specification
Construction Diameter mm Approx kg/1000m Minimum Breaking Load kN Minimum Breaking Load kg
7x19
Ss Wire Rope 3.2mm
2.5 25 4.41 450
3 36 6.37 650
3.2 1/8" 40.96 7.85 801
4 64 8.62 880
4.5 81 12.25 1250
4.76 3/16" 92.16 16.51 1685
5 100 16.66 1700
5.6 125.44 22.25 2270
6 144 23.52 2400
6.35 1/4" 163.84 28.5 2908
8 5/16" 256 40.1 4082
9 324 46 4694
9.53 3/8" 361 53.4 5449
10 400 54 5510
12 576 73 7449
13 1/2" 676 82 8367
14 784 89 9082
16 1024 124 12653
18 1296 157 16020
20 1600 194 19796
22 1936 235 23980
24 2304 280 28571
26 2704 328 33469
28 3136 381 38878
30 3600 437 44592
32 4096 497 50714

Company Information

TIANLI STAINLESS STEEL found in 2008, specialized in producing stainless steel products, such as stainless steel wire rope, stainless Steel Link Chain, stainless steel round bar and its related accessories. Our annual sales over 5000 tons. our products not only popular with excellent quality, but also receive good market feedback from China domestic and overseas.
Ss Wire Rope 3.2mm

Factory

Part of our stainless steel wire rope production workshop. Monthly production capacity 600 tons.
Ss Wire Rope 3.2mm

Packaging and Shipping

Stainless Steel Wire Rope all packed by clean plywood reel, reel on plywood pallet for easy loading and unloading. clear plastic film also covered to avoid dirt and water.

Ss Wire Rope 3.2mm

Certifications

We are an ISO9001:2008 certified manufacturer for Stainless Steel Products.

Test Report from our National Stainless Steel Products Quality Supervision & Inspection Center available, date of issue within 5 working days.

Ss Wire Rope 3.2mm

Inspection

We have strict quality control from raw material to production process and finished products.

Chemical composition analysis and tensile strength, minimum breaking load test for every production batch.

Ss Wire Rope 3.2mm

Looking for ideal Wire Rope 1.5 Mm Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 1.5 Mm Steel Wire Rope are quality guaranteed. We are China Origin Factory of 6mm Steel Rope. If you have any question, please feel free to contact us.

Product Categories : Stainless Steel Wire Rope > 7x19 Stainless Steel Wire Rope
